Case 2: Severe ASD

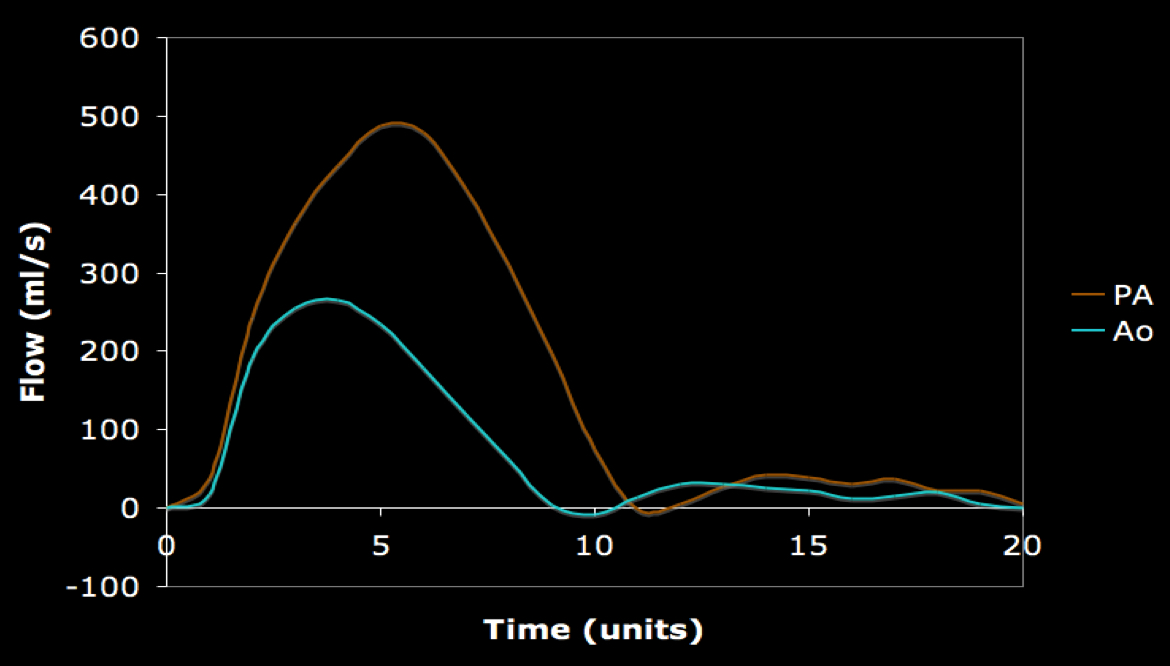

Cine 4CH and SA: Dilated RV with diastolic D-shaping of the interventricular septum in a patient with a large atrial septum defect. Note the interatrial shunting. Flow-time curve with left-to-right shunt: Qp:Qs = 2.5:1
